relm

Local models. Inspectable experiments. Ordinary R.

relm runs open-weight models on your machine with no Python, model server or API key. Generate text and constrained JSON, embed documents, and inspect a model’s internal values using ordinary R vectors, data frames and matrices. Its Rust core embeds a pinned, patched llama.cpp; R remains your working environment for statistics, visualization and reproducible research.

Version 0.4.0 adds the complete research workflow: background generation, token events, live observations, recorded directions, component projections and base-R graphics, with code and trace-validation maintenance. See the release notes. The 0.4.0 release is published, including a verified fresh Mac arm64 r-universe installation. Check packageVersion("relm") and restart R after upgrading.

This checkout prepares 0.5.0, combining optional Linux CUDA and CRAN source portability. It is not yet a published release or a CRAN-accepted package; see the submission status.

Installation

Use r-universe for macOS and Linux builds:

install.packages(
  "relm",
  repos = c("https://vadale.r-universe.dev", getOption("repos"))
)
packageVersion("relm")

r-universe tracks main; check the version before using the 0.4.0 research features. Prebuilt binaries need no native toolchain. Source installation needs R >= 4.5, Cargo >= 1.85.0 and rustc >= 1.85.0 (checked separately), CMake >= 3.28, xz and a C/C++ compiler. See the installation guide for source builds and troubleshooting. Development source additionally supports an explicit Linux CUDA build; released 0.4.0 binaries are not certified CUDA builds. Windows CPU source checks passed at PR71; Windows GPU and full live-file lifecycle parity remain unverified.

Core imports are methods (included with R) and nanoarrow, which reads spilled traces. glmnet is optional for probes; uwot and dbscan are optional demo packages. Optional later and promises enable async/streaming generation. Application examples prepare their own separate dependency environments.

Quickstart

The small Qwen model below is approximately 675 MB. llm_download() verifies the pinned Apache-2.0 model by SHA256 and reuses a matching cached copy.

library(relm)

path <- llm_download("qwen2.5-0.5b-instruct-q8_0")
m <- llm(path)

llm_generate(m, "The capital of France is", chat = FALSE,
             max_tokens = 8, temperature = 0)

# Embeddings are numerical representations of text: one matrix row per input.
emb <- llm_embed(m, c("cats", "kittens", "quarterly revenue"))
tcrossprod(emb)  # cosine similarities between normalized rows

# Activations are the numerical values inside the model at a selected layer.
tr <- llm_trace(m, "The movie was wonderful.",
                layers = 12, positions = "last", components = "residual")
as.matrix(tr, layer = 12, component = "residual")

llm_tokens() also converts text to token IDs, and llm_logits() returns the next-token distribution as a data frame. Capture filters keep traces small; traces over the configured budget spill to disk and are read a slice at a time. The full 4B-model spill acceptance on a 16 GB Mac remains an open hardware check.

Structured output

Pass JSON Schema text to the existing generation function. This example reuses the model loaded above and returns a JSON string:

schema <- '{
  "type": "object",
  "properties": {
    "sentiment": {"type": "string", "enum": ["positive", "negative"]}
  },
  "required": ["sentiment"],
  "additionalProperties": false
}'
llm_generate(m, 'Classify the sentiment of "I loved this film." Return JSON.',
             schema = schema, max_tokens = 64, temperature = 0)
close(m)

Successful calls return complete, validated JSON. Unsupported schemas fail before generation; incomplete output raises a classed R condition. The supported profile includes closed objects, bounded strings and integers, string enums, booleans and null. Arrays, general JSON Schema, image inputs and nonempty stop sequences are outside this mode. Schema validation establishes format, not factual correctness. Ordinary text and image generation retain schema = NULL.

Spark-X2.5-4B is also supported natively through llama.cpp b10828. Its optional spark-x2.5-4b-q8_0 alias downloads the official 4.38 GB GGUF. Constrained chat uses Spark’s official non-thinking opener. Spark activation tracing is unsupported until an independent numerical reference exists.

A complete research experiment

The research API guide explains prompt traces, live observations and the data needed for comparisons. The complete walkthrough connects paired traces, recorded directions, original/zero/intervention controls, text evaluation and CSV/RDS/plot export. It is a repository example: clone or download the repository as well as installing relm.

A separate first-use study records an agent’s actual attempt with the released package. Its six calls completed, but the small model invented facts in every response. Read that report for practical difficulties and what was not tested; it is not external-human usability validation.

Streaming and live observations

llm_generate(async = TRUE) returns a promise while a native worker generates. on_token receives data-frame batches of token/text events; on_state receives bounded live observations. Optional later >= 1.4.8 and promises >= 1.5.0 are required. In a noninteractive script, service the event loop until settlement. Callbacks run on R’s main thread and must remain short; llm_cancel() requests cooperative cancellation. See the streaming guide and the complete walkthrough for actual waiting and cleanup.

Ordinary llm_trace() observes a supplied prompt; it cannot trace an intervened handle. To compare original and intervened generation, retain on_state observations and pass them to llm_compare() with the recorded settings and preceding sampled-token history. Live coefficient updates are additive; component projection stays fixed for the derived handle. The support matrix records the supported combinations.

Investigate model behavior

llm_probe() fits binary ridge models to activation traces using a formula with activations(). A probe asks how readily a label can be predicted from internal model values. Explicit source groups keep related prompts together during cross-validation; preprocessing and layer/regularization selection use development data only. Reserve test_groups before analysis for held-out evaluation and conditional group-bootstrap intervals. Without a holdout, results are labelled exploratory and carry no inferential interval.

Use summary(), plot() and predict() on the fitted probe. The anatomy-lab vignette explains grouped evaluation and saved-fit prediction. The complete probe evaluation script runs a paired-source example with paired-label and simple-feature controls. Predictive decodability does not establish causal use.

For interventions, llm_steer() adds a chosen direction to the residual stream, the values passed between model layers. llm_ablate() fixes selected units to a value to investigate their effect. Both return a fresh model context over shared weights; the original handle remains available for an exact reversal. A runtime check refuses an intervention it cannot verify rather than silently doing nothing. These are instruments to audit and investigate behavior, not guarantees of safety or bias removal.

Images and worked demos

Since 0.2.0, vision-language models accept JPEG, PNG and BMP inputs through llm_generate(images = ...) and llm_embed(images = ...). Load the model with its companion llm(projector = ...): the projector translates images into values the language model can read. Interpretability of the vision encoder itself is outside the current release.

Start with these worked demos using pinned Apache-2.0 models:

• The anatomy lab: activation traces, statistical probes and interventions. Open vignette("anatomy-lab", package = "relm").
• Topic modelling without Python: embeddings, UMAP, HDBSCAN and model-generated cluster names. Open vignette("topics-without-python", package = "relm").
• Seeing machines: generate test images, ask about them and compare image/text embeddings. Open vignette("vision", package = "relm").

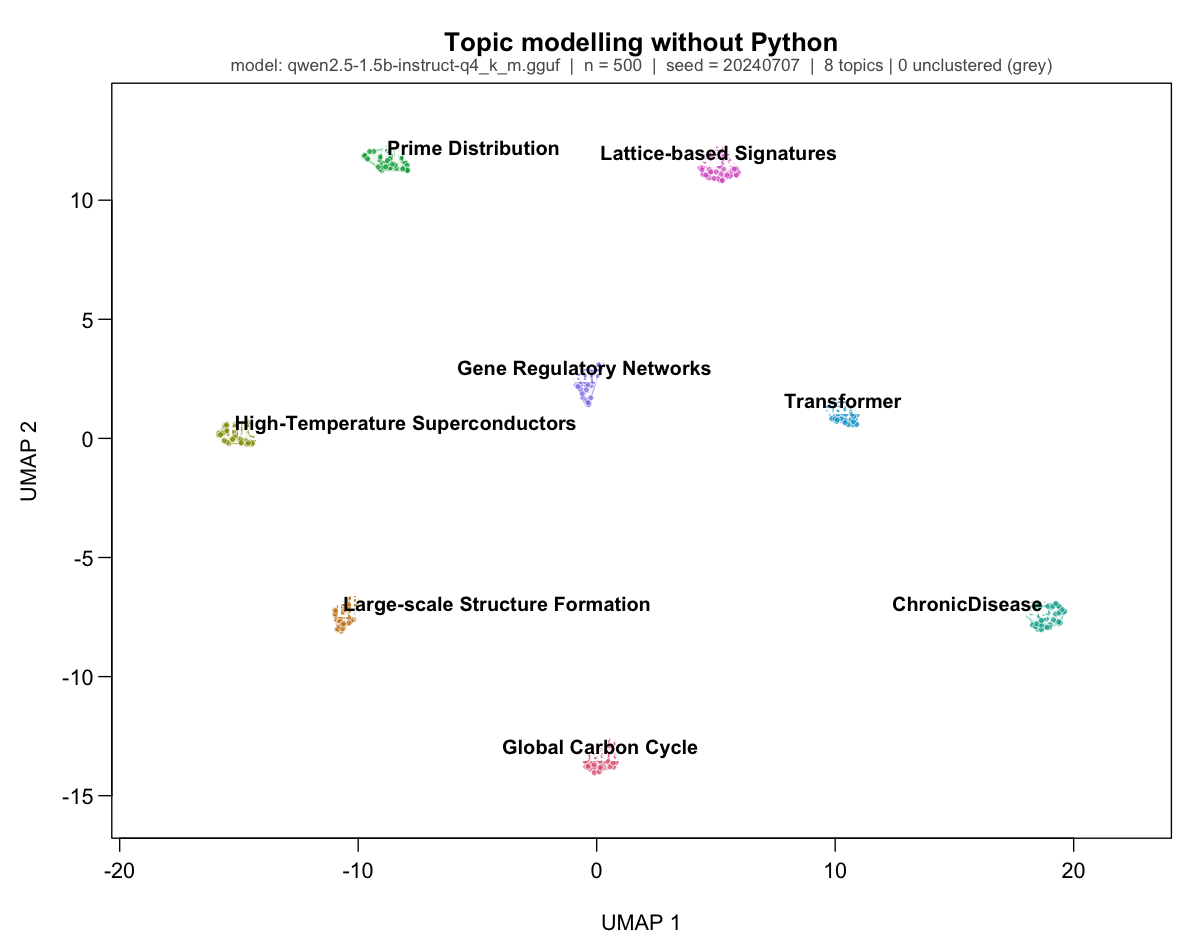

Recorded Demo B output on 500 abstracts. The figure illustrates this corpus and model run; it is not a general clustering-quality benchmark.

From an R session to a repeatable application

The repository includes two application templates, separate from the core API:

• Restartable funding extraction: explicit setup, offline execution, immutable results and verified resume.
• Local funding service: one loopback HTTP frontend, one persistent model worker, one active request, no job queue, durable tickets and recovery commands.

Their Mac/Linux operational acceptance includes interruption recovery and 1,000 same-worker service requests. Exact source provenance, limits and prior failures remain in the service report. Operational reliability does not establish extraction accuracy: the frozen D1 pilot had 10/10 schema-valid, 2/10 task-valid and 0/10 fully grounded records, failing all four promotion gates. See the quality evaluation.

Validation and license

The validation ledger distinguishes independent numerical references, regression checks and open hardware/research gates. The architecture and decisions explain the native engine and its boundaries.

Original code is MIT OR Apache-2.0. Vendored llama.cpp is MIT. Modified redistributions must rename under the trademark policy.
