SHAP values (Lundberg and Lee, 2017) decompose model predictions into additive contributions of the features in a fair way. A model agnostic approach is called Kernel SHAP, introduced in Lundberg and Lee (2017), and investigated in detail in Covert and Lee (2021).

The “kernelshap” package implements a multidimensional refinement of the Kernel SHAP Algorithm described in Covert and Lee (2021). The package allows to calculate Kernel SHAP values in an exact way, by iterative sampling (as in Covert and Lee, 2021), or by a hybrid of the two. As soon as sampling is involved, the algorithm iterates until convergence, and standard errors are provided.

The default behaviour depends on the number of features \(p\):

- \(2 \le p \le 8\): Exact Kernel SHAP values are returned. (Exact regarding the given background data.)
- \(p > 8\): Hybrid (partly exact) iterative version of Kernel SHAP. The algorithm iterates until Kernel SHAP values are sufficiently accurate.
- \(p = 1\): Exact Shapley values are returned.

The main function `kernelshap()`

has three key
arguments:

`object`

: Fitted model object.`X`

: A (n x p)`matrix`

,`data.frame`

,`tibble`

or`data.table`

of rows to be explained. The columns should only represent model features, not the response.`bg_X`

: Background data used to integrate out “switched off” features, often a subset of the training data (typically 50 to 500 rows). It should contain the same columns as`X`

. In cases with a natural “off” value (like MNIST digits), this can also be a single row with all values set to the off value.

Additional arguments of `kernelshap()`

can be used to
control details of the algorithm, to activate parallel processing, or to
manually pass a prediction function.

**Remarks**

- To visualize the result, you can use R package “shapviz”.
- Passing
`bg_w`

allows to weight background data according to case weights. - Meta-learner packages like “tidyvmodels”, “caret”, or “mlr3” are straightforward to use.
- In order to use parallel processing, the backend must be set up beforehand, see the example below.

```
# From CRAN
install.packages("kernelshap")
# Or the newest version from GitHub:
# install.packages("devtools")
::install_github("mayer79/kernelshap") devtools
```

The typical workflow to explain any model with Kernel SHAP:

**Fit**: Fit a model`object`

on some training data, e.g., a linear regression, an additive model, a random forest or a deep neural net. The only requirement is that predictions are numeric.**Sample rows to explain**: Sample 500 to 2000 rows`X`

to be explained. If the training dataset is small, simply use the full training data for this purpose.`X`

should only contain feature columns.**Select background data**: Kernel SHAP requires a representative background dataset`bg_X`

to calculate marginal means. For this purpose, set aside 50 to 500 rows from the training data. If the training data is small, use the full training data.**Crunch**: Use`kernelshap(object, X, bg_X, ...)`

to calculate SHAP values. Runtime is proportional to`nrow(X)`

, while memory consumption scales linearly in`nrow(bg_X)`

.**Analyze**: Show SHAP importance/summary plot and study SHAP dependence plots of features.

Let’s illustrate this on the diamonds data in the “ggplot2” package.

```
library(ggplot2)
library(kernelshap)
library(shapviz)
# Prepare data
<- transform(
diamonds
diamonds,log_price = log(price),
log_carat = log(carat)
)
# 1) Fit model
<- lm(log_price ~ log_carat + clarity + color + cut, data = diamonds)
fit_lm
# 2) Sample rows to be explained
set.seed(10)
<- c("log_carat", "clarity", "color", "cut")
xvars <- diamonds[sample(nrow(diamonds), 1000), xvars]
X
# 3) Select background data
<- diamonds[sample(nrow(diamonds), 200), ]
bg_X
# 4) Crunch SHAP values for all 1000 rows of X (~6 seconds)
system.time(
<- kernelshap(fit_lm, X, bg_X = bg_X)
shap_lm
)
shap_lm
# SHAP values of first 2 observations:
# carat clarity color cut
# [1,] 1.2692479 0.1081900 -0.07847065 0.004630899
# [2,] -0.4499226 -0.1111329 0.11832292 0.026503850
# 5) SHAP analysis
<- shapviz(shap_lm)
sv_lm sv_importance(sv_lm)
sv_dependence(sv_lm, "log_carat")
# ... more dependence plots
```

We can also explain a specific prediction instead of the full model:

```
<- diamonds[5000, xvars]
single_row
|>
fit_lm kernelshap(single_row, bg_X = bg_X) |>
shapviz() |>
sv_waterfall()
```

We can use the same `X`

and `bg_X`

to inspect
other models:

```
library(ranger)
# 1) Fit
<- ranger(
fit_rf ~ log_carat + clarity + color + cut,
log_price data = diamonds,
num.trees = 20,
seed = 20
)
# 4) Crunch
<- kernelshap(fit_rf, X, bg_X = bg_X)
shap_rf
shap_rf
# SHAP values of first 2 observations:
# log_carat clarity color cut
# [1,] 1.1987785 0.09578879 -0.1397765 0.002761832
# [2,] -0.4969451 -0.12006207 0.1050928 0.029680717
# 5) Analyze
<- shapviz(shap_rf)
sv_rf sv_importance(sv_rf, kind = "bee", show_numbers = TRUE)

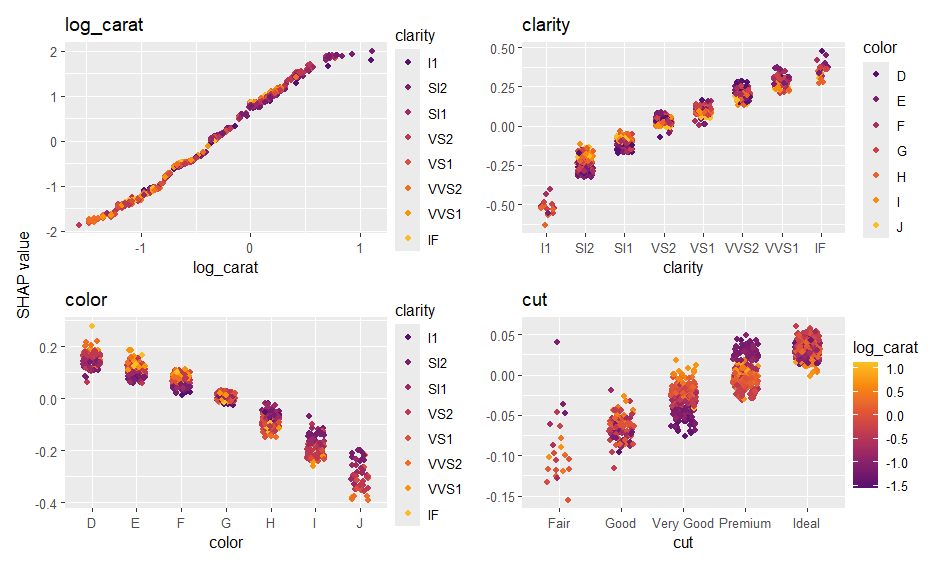

sv_dependence(sv_rf, "log_carat", color_var = "auto")
# More dependence plots
```

Or a deep neural net (results not fully reproducible):

```
library(keras)
# 1) Fit
<- keras_model_sequential()
nn |>
nn layer_dense(units = 30, activation = "relu", input_shape = 4) |>
layer_dense(units = 15, activation = "relu") |>
layer_dense(units = 1)
|>
nn compile(optimizer = optimizer_adam(0.1), loss = "mse")
<- list(
cb callback_early_stopping(patience = 20),
callback_reduce_lr_on_plateau(patience = 5)
)
|>
nn fit(
x = data.matrix(diamonds[xvars]),
y = diamonds$log_price,
epochs = 100,
batch_size = 400,
validation_split = 0.2,
callbacks = cb
)
# 4) Crunch
<- function(mod, X) predict(mod, data.matrix(X), batch_size = 10000)
pred_fun <- kernelshap(nn, X, bg_X = bg_X, pred_fun = pred_fun)
shap_nn
# 5) Analyze
<- shapviz(shap_nn)
sv_nn sv_importance(sv_nn, show_numbers = TRUE)

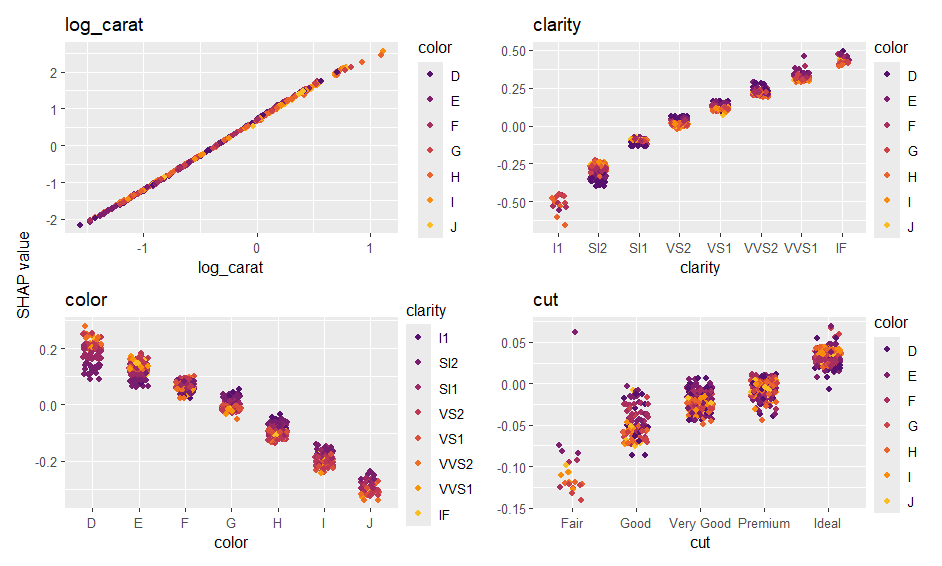

sv_dependence(sv_nn, "clarity", color_var = "auto")
# More dependence plots
```

As long as you have set up a parallel processing backend, parallel
computing is supported via `foreach`

. This will deactivate
the progress bar.

```
library(doFuture)
# Set up parallel backend
registerDoFuture()
plan(multisession, workers = 4) # Windows
# plan(multicore, workers = 4) # Linux, macOS, Solaris
# 4) Crunch with parallel computing (~3 seconds on second run)
system.time(
<- kernelshap(fit_lm, X, bg_X = bg_X, parallel = TRUE)
s )
```

On Windows, sometimes not all packages or global objects are passed
to the parallel sessions. In this case, the necessary instructions to
`foreach`

can be specified through a named list via
`parallel_args`

, see the following example:

```
library(mgcv)
# 1) Fit
<- gam(log_price ~ s(log_carat) + clarity + color + cut, data = diamonds)
fit_gam
# 4) Crunch
system.time(
<- kernelshap(
shap_gam
fit_gam,
X, bg_X = bg_X,
parallel = TRUE,
parallel_args = list(.packages = "mgcv")
)
)
shap_gam
# SHAP values of first 2 observations:
# log_carat clarity color cut
# [1,] 1.2714988 0.1115546 -0.08454955 0.003220451
# [2,] -0.5153642 -0.1080045 0.11967804 0.031341595

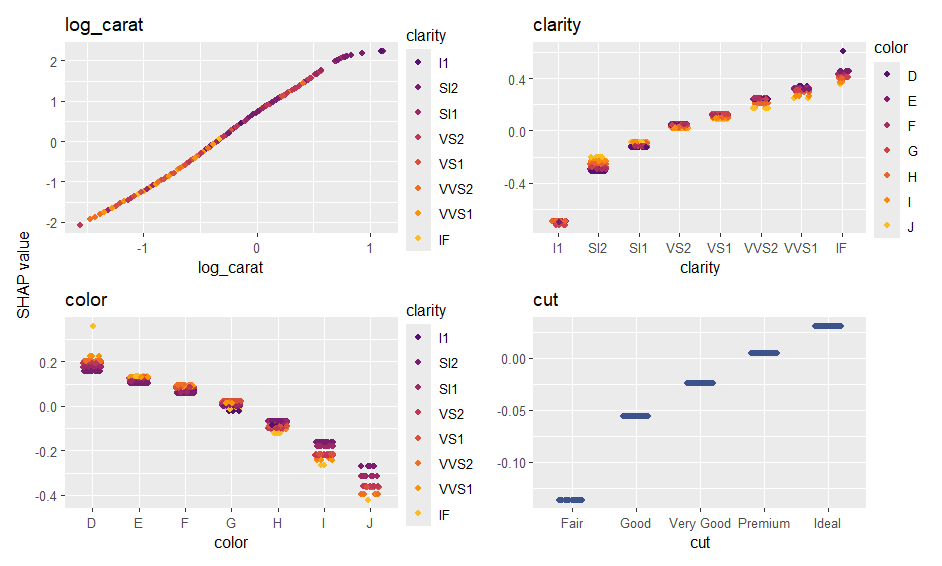

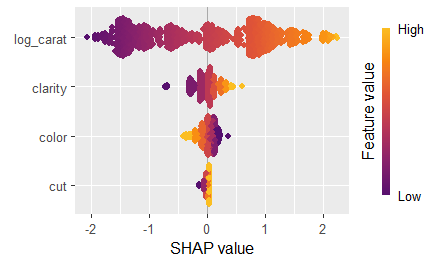

# 5) Analyze
# ...
```

In above examples, since \(p\) was
small, exact Kernel SHAP values were calculated. Here, we want to show
how to use the different strategies (exact, hybrid, and pure sampling)
in a situation with ten features, see `?kernelshap`

for
details about those strategies. The results will be mostly identical.
Thus, you usually do not need to care about those options of
`kernelshap()`

.

With ten features, a degree 2 hybrid is used by default:

```
library(kernelshap)
set.seed(1)
<- data.frame(matrix(rnorm(1000), ncol = 10))
X <- rnorm(10000L)
y <- lm(y ~ ., data = cbind(y = y, X))
fit
<- kernelshap(fit, X[1L, ], bg_X = X)
s summary(s)
$S[1:5]
s# Kernel SHAP values by the hybrid strategy of degree 2
# - SHAP matrix of dim 1 x 10
# - baseline: -0.005390948
# - average number of iterations: 2
# - rows not converged: 0
# - proportion exact: 0.9487952
# - m/iter: 20
# - m_exact: 110
# 0.0101998581 0.0027579289 -0.0002294437 0.0005337086 0.0001179876
```

The algorithm converged in the minimal possible number of two
iterations and used \(110 + 2\cdot 20 =
150\) on-off vectors \(z\). For
each \(z\), predictions on a data set
with the same size as the background data are done. Three calls to
`predict()`

were necessary (one for the exact part and one
per sampling iteration).

Since \(p\) is not very large in this case, we can also force the algorithm to use exact calculations:

```
<- kernelshap(fit, X[1L, ], bg_X = X, exact = TRUE)
s summary(s)
$S[1:5]
s# Exact Kernel SHAP values
# - SHAP matrix of dim 1 x 10
# - baseline: -0.005390948
# - m_exact: 1022
# 0.0101998581 0.0027579289 -0.0002294437 0.0005337086 0.0001179876
```

The results are identical. While more on-off vectors \(z\) were required (1022), only a single
call to `predict()`

was necessary.

Pure sampling (not recommended!) can be enforced by setting the hybrid degree to 0:

```
<- kernelshap(fit, X[1L, ], bg_X = X, hybrid_degree = 0)
s summary(s)
$S[1:5]
s# Kernel SHAP values by iterative sampling
# - SHAP matrix of dim 1 x 10
# - baseline: -0.005390948
# - average number of iterations: 2
# - rows not converged: 0
# - proportion exact: 0
# - m/iter: 80
# - m_exact: 0
# 0.0101998581 0.0027579289 -0.0002294437 0.0005337086 0.0001179876
```

The results are again identical here and the algorithm converged in
two steps. In this case, two calls to `predict()`

were
necessary and a total of 160 \(z\)
vectors were required.

Here, we provide some working examples for “tidymodels”, “caret”, and “mlr3”:

```
library(tidymodels)
library(kernelshap)
<- iris %>%
iris_recipe recipe(Sepal.Length ~ .)
<- linear_reg() %>%
reg set_engine("lm")
<- workflow() %>%
iris_wf add_recipe(iris_recipe) %>%
add_model(reg)
<- iris_wf %>%
fit fit(iris)
<- kernelshap(fit, iris[, -1], bg_X = iris)
ks ks
```

```
library(caret)
library(kernelshap)
library(shapviz)
<- train(
fit ~ .,
Sepal.Length data = iris,
method = "lm",
tuneGrid = data.frame(intercept = TRUE),
trControl = trainControl(method = "none")
)
<- kernelshap(fit, iris[, -1], predict, bg_X = iris)
s <- shapviz(s)
sv sv_waterfall(sv, 1)
```

```
library(mlr3)
library(mlr3learners)
library(kernelshap)
library(shapviz)
$get("iris")
mlr_taskstsk("iris")
<- TaskRegr$new(id = "iris", backend = iris, target = "Sepal.Length")
task_iris <- lrn("regr.lm")
fit_lm $train(task_iris)
fit_lm<- kernelshap(fit_lm, iris[-1], bg_X = iris)
s <- shapviz(s)
sv sv_dependence(sv, "Species")
```

[1] Scott M. Lundberg and Su-In Lee. A Unified Approach to Interpreting Model Predictions. Advances in Neural Information Processing Systems 30, 2017.

[2] Ian Covert and Su-In Lee. Improving KernelSHAP: Practical Shapley Value Estimation Using Linear Regression. Proceedings of The 24th International Conference on Artificial Intelligence and Statistics, PMLR 130:3457-3465, 2021.
