ggalign

This package extends ggplot2 by providing advanced tools for aligning and organizing multiple plots, particularly those that automatically reorder observations, such as dendrogram. It offers fine control over layout adjustment and plot annotations, enabling you to create complex, publication-quality visualizations while still using the familiar grammar of ggplot2.

Why use `ggalign`?

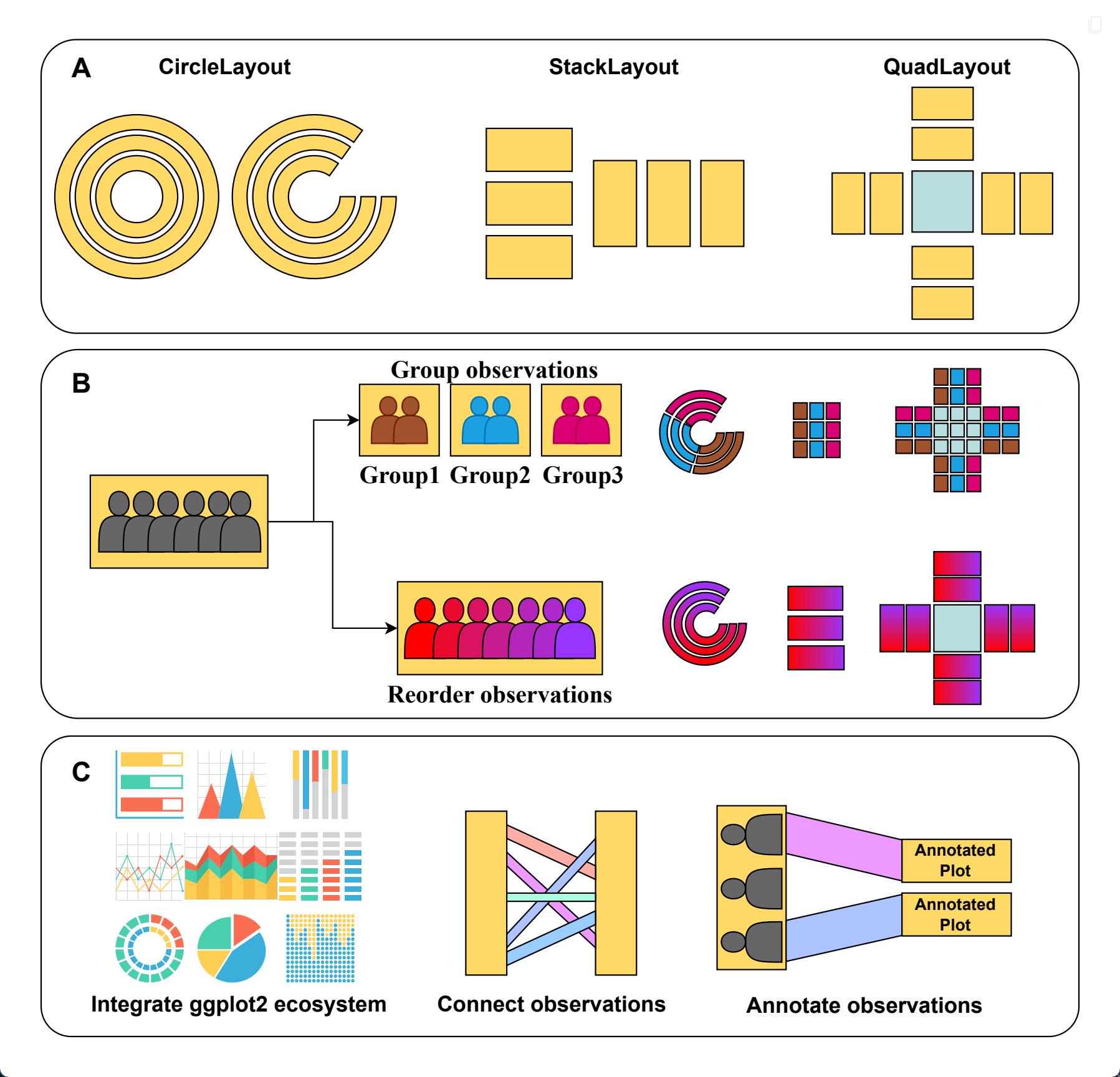

ggalign focuses on aligning observations across multiple plots. It leverages the "number of observations" in the vctrs package or NROW() function to maintain consistency in plot organization.

If you’ve ever struggled with aligning plots with self-contained ordering (like dendrogram), or applying consistent grouping or ordering across multiple plots (e.g., with k-means clustering), ggalign is designed to make this easier. The package integrates seamlessly with ggplot2, providing the flexibility to use its geoms, scales, and other components for complex visualizations.

Installation

You can install ggalign from CRAN using:

install.packages("ggalign")

Alternatively, install the development version from r-universe with:

install.packages("ggalign",
    repos = c("https://yunuuuu.r-universe.dev", "https://cloud.r-project.org")
)

or from GitHub with:

# install.packages("remotes")
remotes::install_github("Yunuuuu/ggalign")

Learning ggalign

The complete tutorial is available at: https://yunuuuu.github.io/ggalign-book/
For the full reference documentation, visit: https://yunuuuu.github.io/ggalign/

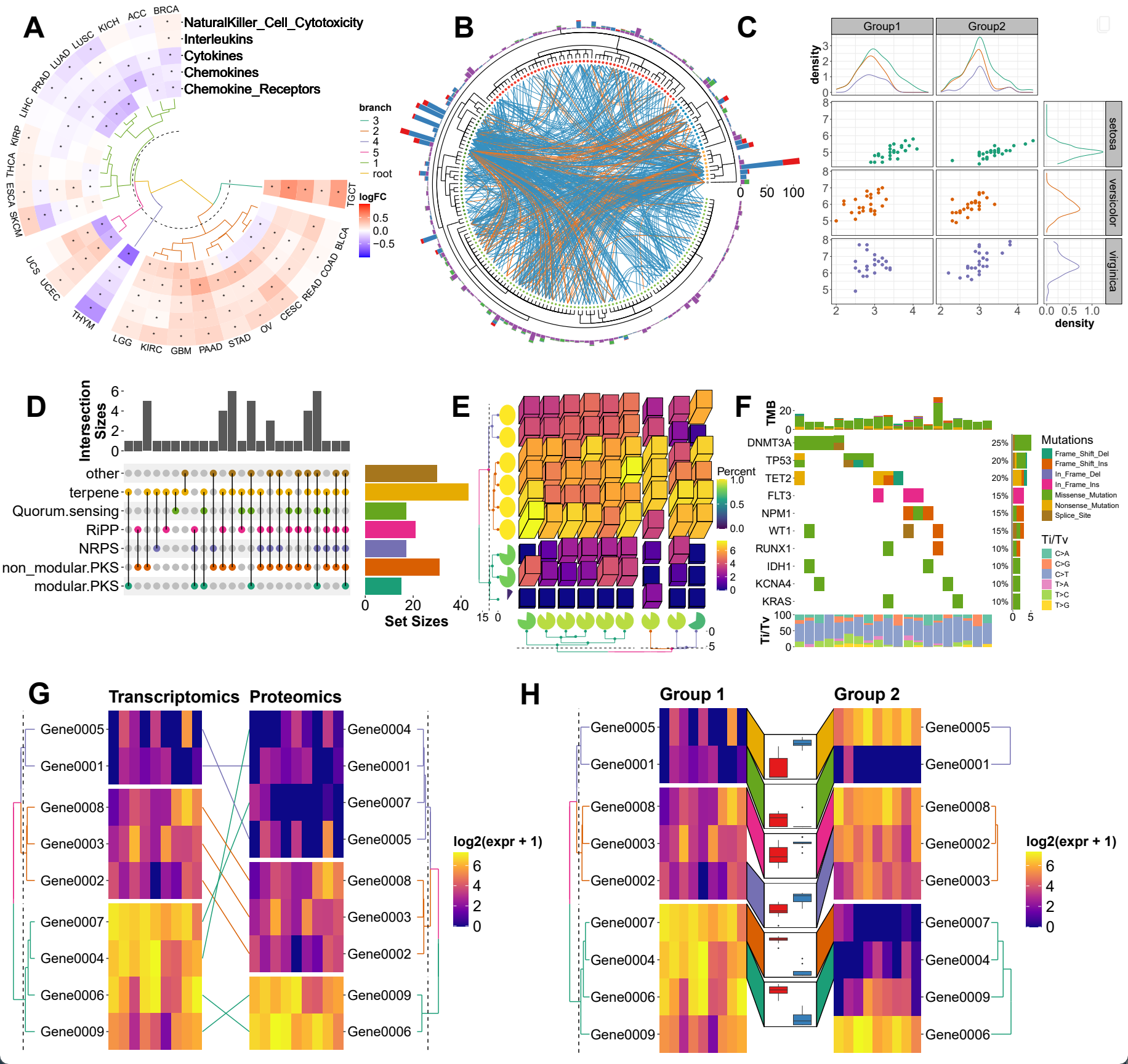

Examples

Compare with other similar tools

		`ggalign`	`marsilea`	`aplot`	`ComplexHeatmap`
Language		R	Python	R	R
User Interface		Declarative	Declarative	Declarative+Functional	Functional
Plot System		ggplot2 (Advanced plot system built on grid system)	Matplotlib	ggplot2 (Advanced plot system built on grid system)	grid
Focus		Composable Visualization	Composable Visualization	Composable Visualization	Heatmap
StackLayout		✅	✅	✅	✅
QuadLayout		✅	✅	✅	Heatmap Only (discrete variables)
CircleLayout		✅	❌	❌	❌
Alignment	One-to-One	✅	✅	✅	✅
	One-to-Many/Many-to-One	✅	❌	❌	❌
	Many-to-Many	✅	❌	❌	❌
	Crosswise	✅	❌	❌	❌
Annotate observations		✅	❌	❌	✅
Fully Compatible with ggplot2		✅	❌	✅	❌

Comparison of specifications with other similar tools

Specification	`ggalign`	`marsilea`	`aplot`	`ComplexHeatmap`
Reorder observations	✅	✅	❌	Heatmap Only
Group observations into different panels	✅	✅	❌	Heatmap Only
Clustering algorithm	Kmeans,Hierarchical Clustering and arbitary algorithm	❌	❌	Kmeans,Hierarchical Clustering and arbitary algorithm
Legends Creation	Automatic	Manual	Automatic	Limited automatic, requires manual add
Legends Position	Anywhere, can be controlled for a single plot	Anywhere	Anywhere	Four sides, can only be placed on one side at a time
Dendrogram	Tree from both `hclust` or `ape`	`hclust` only	Tree from both `hclust` or `ape`	`hclust` only
Tanglegram	✅	❌	❌	❌
3D Heatmap	✅	❌	❌	✅
Oncoplot	✅	✅	✅	✅
UpSet plot	✅	✅	❌	✅

Acknowledgements

I would like to express my sincere gratitude to the contributors of the ggplot2 project for providing a powerful and flexible framework for data visualization in R. Their work laid the foundation for the functionality and design of this package. I would also like to thank the patchwork project, from which the core coding for the plot composer was adapted. The patchwork library provided a useful mechanism for combining and aligning plots, which was modified to suit the needs of this package. Without the contributions of these open-source projects, this package would not have been possible.

Additionally, I would like to extend my heartfelt thanks to @teunbrand, who has fulfilled my numerous feature requests, and assisted with the integration of new functions into ggplot2.
